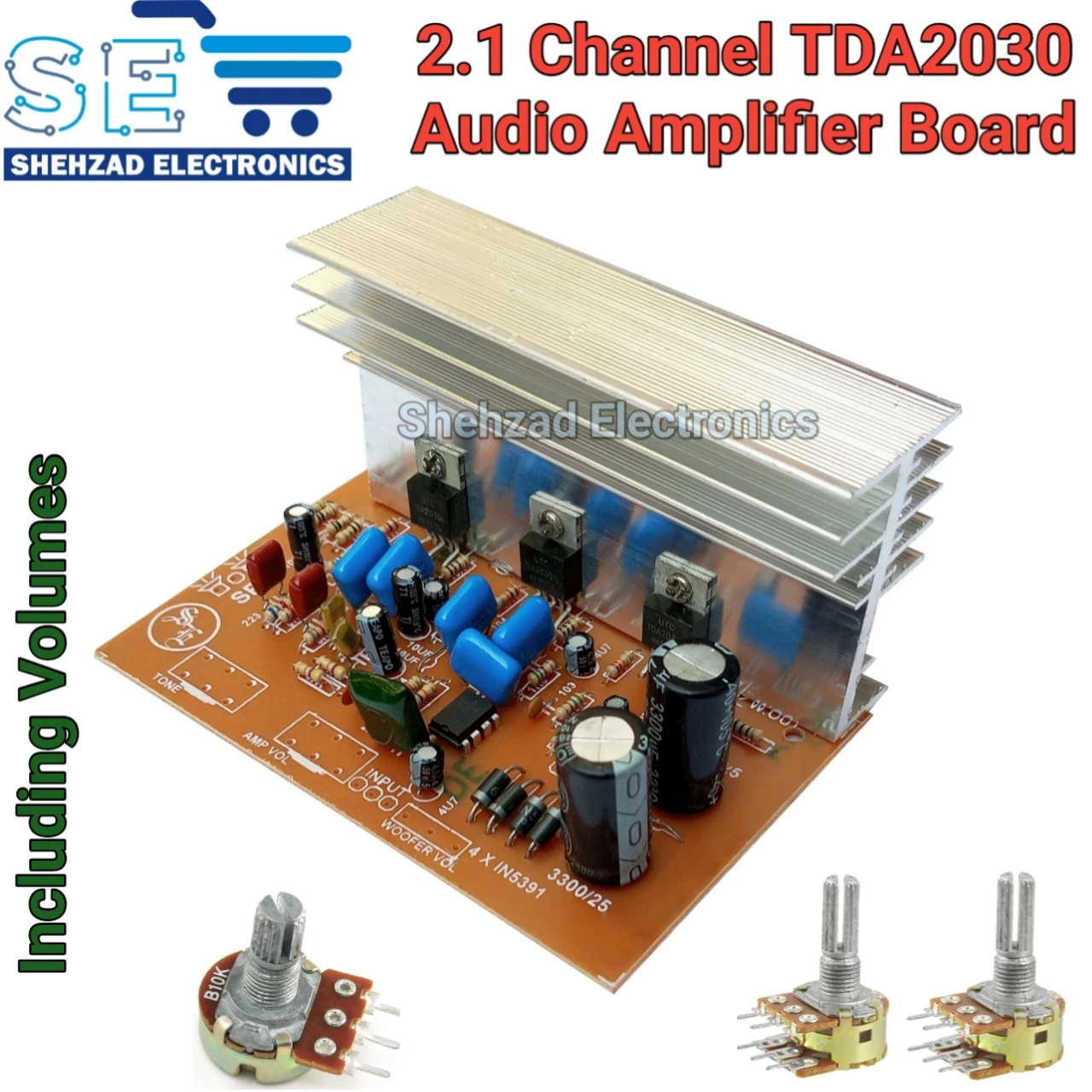

TDA2030 2.1 Channel 54 Watts Audio Amplifier Board Subwoofer

Product Details

Buy TDA2030 2.1 Channel 54 Watts Audio Amplifier Board Subwoofer in Pakistan at best price. Original product with fast delivery available.

Product details of TDA2030 2.1 Channel 54 Watts Audio Amplifier Board Subwoofer
Product Name: 2.1 Channel Circuit TDA2030 54 Watts Audio Amplifier Board Subwoofer
Chip Type: Class AB
Chip model: TDA2030 & JRC4558
Supply voltage: 12+12 VOLTS AC
Output channel: 2.1 channel
Output power: 18W+18W+18W
Power efficiency: over 90%
Impedance: 4Ω to 8Ω (Use 4Ω for Double Power)
Frequency responce: 20Hz to 2000Hz
Woofer Frequency responce: 20Hz to 250Hz
Size: 11*6.5*4cm
2.1 Channel Circuit TDA2030 54 Watts Audio Amplifier Board Sub Woofer Operate On 12 0 12 AC Transformer Supply At Least 4 Ampere.

Bass Output Power: Maximum 20W, 4-6 Inch, 4-6 Ohm 20W Subwoofer Is recommended.

Left And Right Channel Output Power: 18W+18W, It Is Recommended To Use 3-4 Inch, 4-8 Ohm 10 – 25W Full Frequency Speaker.

The Left And Right Channels Use A Enthusiast Audio Dedicated Chip TDA2030 As An Output Stage, Which Really Provides High Quality Results.

In Woofer Amplifier Section, NJM4558 Chip Is Used As A Low Pass Filter To Enhance Low Frequency Response And Boost Bass Output

Specifications of TDA2030 2.1 Channel 54 Watts Audio Amplifier Board Subwoofer
BrandNo BrandSKU195678873_PK-1390512272Input ConnectivityStereo
What’s in the box 1 x 2.1 Audio amplifier circuit
